SMT PRODUCTION - ElettronicaFM

Our assembly lines have a global productivity of 150,000 units per hour and the possibility of assembling chips with cases up to 01005.

LASER MARKING MACHINE

1 OSAI-AS NEOMARK TWIN automatic laser marking machine

SMT LINE 1

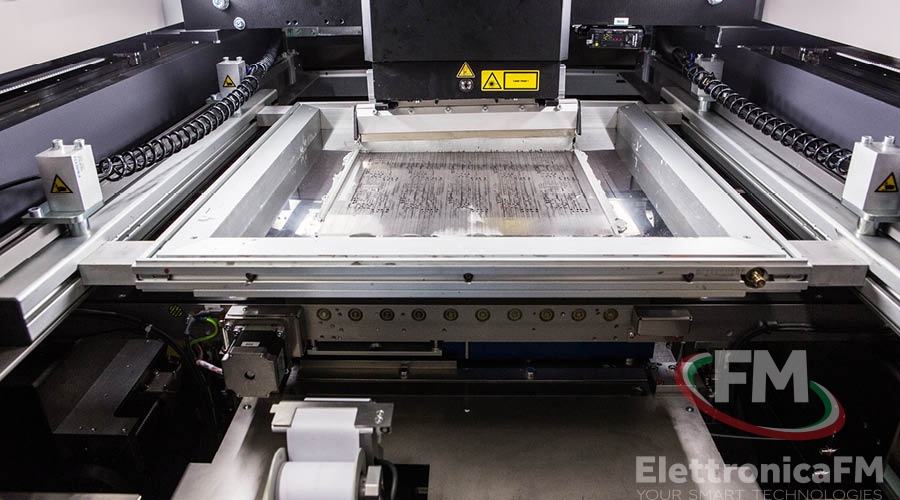

No. 1 EKRA serigraph with proflow
No. 1 SPI KOH YOUNG KY8030-3 machine
No. 8 P&P FUJI NXT II modules
No. 1 No. 1 SMT Technology XL thermal discovery inert atmosphere oven with 11 zones

SMT LINE 2
No. 1 EKRA serigraph with proflow and optical inspection
No. 1 SPI KOH YOUNG KY8030-3 machine
No. 3 P&P FUJI AIMEX 3C modules
No. 1 SMT Technology “L" thermal discovery inert atmosphere oven
with 8 zones and vacuum chamber

SMT LINE 3
No. 1 EKRA serigraph with proflow and optical inspection
No. 2 P&P FUJI AIMEX 3C modules
No. 1 SMT Technology “M” thermal discovery inert atmosphere oven
with KIC thermal profiling

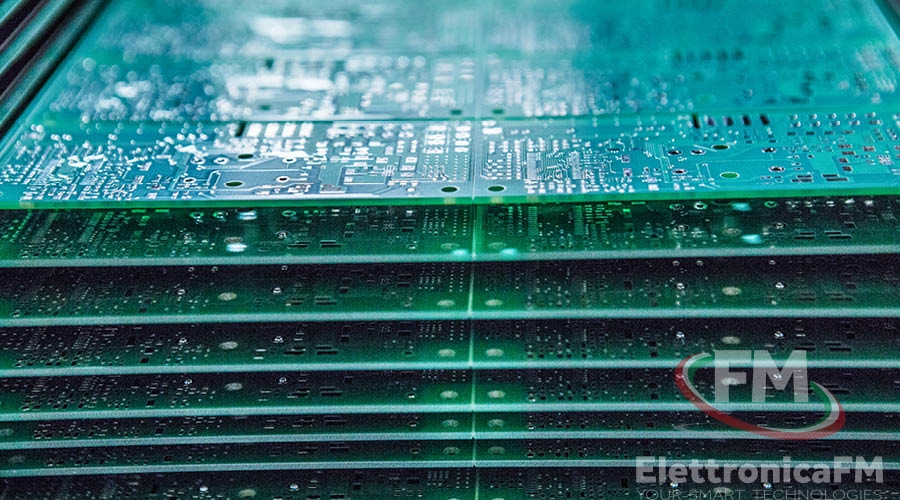

100% of the boards are subjected to an AOI control: automatic optical inspection process.

AOI LINES 1 & 2
2 Koh Young Zenith 3D automatic optical inspection machines with automatic loading and unloading.
